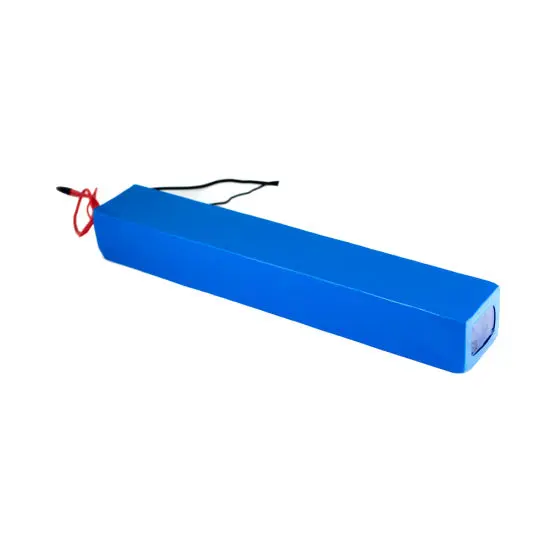

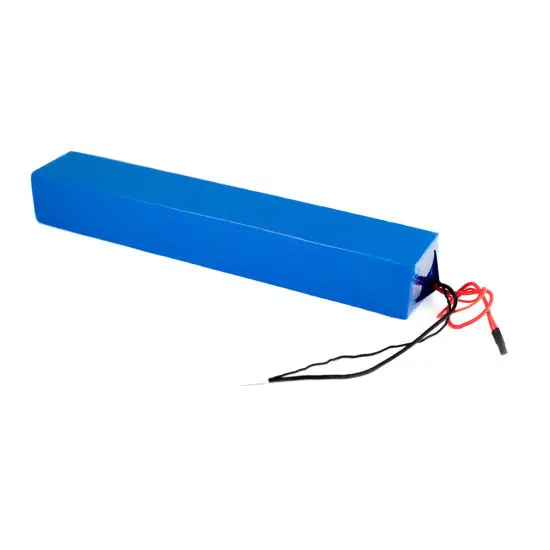

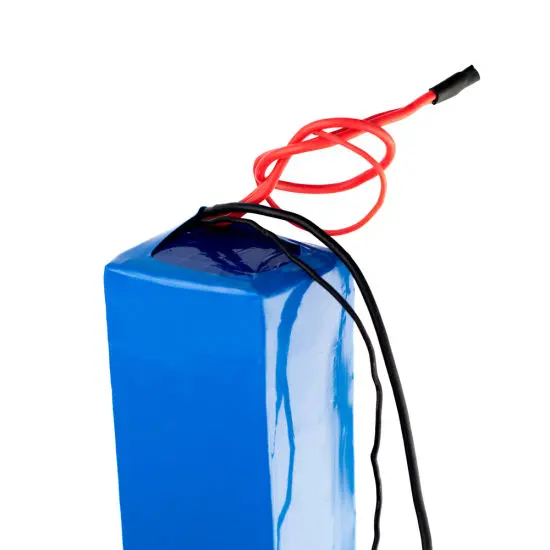

36V 10Ah Lithium Ion Battery Pack for E-Bike (Del-36V10P)
Prezentare generală a produsului
| Modelul bateriei | Del-36V10P |
|---|---|
| Tensiune nominală | 36V |
| Capacitate nominală | 10Ah |
| Tip baterie | Pachet de baterii litiu 18650 |
| Configurația bateriei | 10S5P |
| Dimensiunea bateriei | 495 x 70 x 38mm |
| Greutate | Approx. 2.5kg |
| Standard Charge Voltage | 42V±0.05V |
| Standard Discharge Voltage | 30±0.05V |
| Impedanță | ≤ 150 mΩ |
| Curent de încărcare | Nominal: 0.5C, Max: 5Ah (adjustable) |
| Curent de descărcare | Nominal: 10Ah, Max: 15Ah (adjustable) |
| Pulse Discharge Current | ≤ 35A (adjustable) |
| Charge End Current | 0.01C |
| Temperatura de funcționare (încărcare) | 0~45ºC |
| Temperatura de funcționare (descărcare) | -20~60ºC |
| Temperatura de depozitare | -20~25ºC (less than 1 year), -20~40ºC (less than 3 months) |
| Ciclul de viață | 1000 cycles |
Caracteristici principale
Ciclu de viață lung
1000 charge/discharge cycles, ensuring long-lasting performance.
1000 charge/discharge cycles, ensuring long-lasting performance.
High Performance
Nominal charge and discharge rates provide reliable power for e-bikes.
Nominal charge and discharge rates provide reliable power for e-bikes.
Adjustable Charge & Discharge Current
Customize charge/discharge rates to fit your specific needs.
Customize charge/discharge rates to fit your specific needs.
Safe & Reliable
BMS with overcharge, over-discharge, and short-circuit protection ensures safety.
BMS with overcharge, over-discharge, and short-circuit protection ensures safety.
Wide Operating Temperature
Charge and discharge within a wide temperature range from -20°C to 60°C.
Charge and discharge within a wide temperature range from -20°C to 60°C.
Compact & Lightweight
Only 2.5kg, compact design makes it easy to integrate into various e-bikes.
Only 2.5kg, compact design makes it easy to integrate into various e-bikes.
Aplicații
- E-Bikes
- Trotinete electrice
- Vehicule electrice (EV)
- Remote Control Vehicles
Avantaje
- Certified with CE, RoHS, MSDS, UN38.3, and FCC for safety and compliance.
- Offers excellent performance with customizable charge/discharge rates.
- Long-lasting durability with 1000 charge cycles.
- Adjustable pulse discharge current, ideal for high-power applications.
- Compact design for easy integration into a variety of e-bike models.
Ambalare și expediere
The 36V 10Ah Lithium Ion Battery is packaged in a standard export carton with foam protection to ensure safe transport. All products undergo QC inspection before delivery.
Metode de expediere
- Comenzi mici: Expediate pe cale aeriană (DHL, FedEx, UPS)
- Comenzi mari: Expediate pe mare (Timp de livrare: 30-45 zile)
