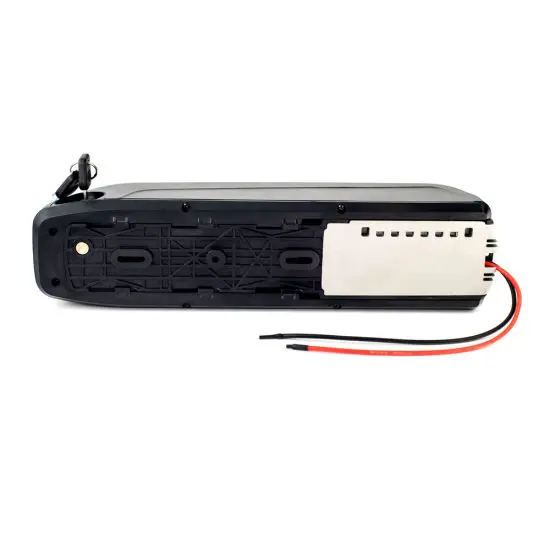

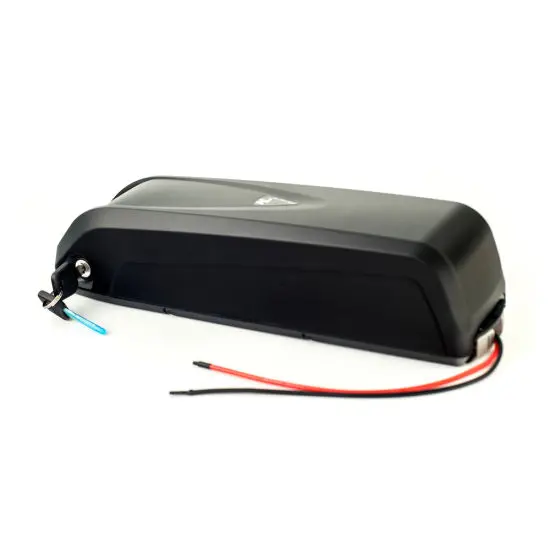

DL-3613 36V 48V 13Ah Hailong Lithium-Ion Battery for Electric Bicycle

Product Overview

Model	DL-3613
Nominal Voltage	36V
Nominal Capacity	13Ah
Battery Type	18650 Lithium Ion Battery
Weight	3.2kg
Dimensions	3679090mm
Production Capacity	20,000 pcs/month
Cycle Life	500 cycles
Warranty	1 year
Certificates	CE, RoHS, MSDS, UN38.3
Origin	China

Battery Features

High Energy Density
Compact and powerful design for longer riding distances with electric bicycles.

Built-in BMS Protection
Protects the battery from overcharging, overdischarging, overcurrent, and short-circuiting.

High Safety
The battery is safer than lead acid batteries, with no risk of explosion or fire.

USB Output
Includes a 5V USB port for charging smartphones and other small devices.

Durable and Long Life
Offers over 500 cycles, ensuring years of reliable use with proper care.

Wide Temperature Range
Performs well across a range of temperatures, from -20°C to 60°C.

Electrical Specifications

Charge Voltage	42V
Discharge Cut-off Voltage	27.5V
Standard Charge Current	2.6A
Max Charge Current	5A
Continuous Discharge Current	15A
Peak Discharge Current	30A
Charge Method	CC/CV
Charge Temperature	0 ~ 45°C
Discharge Temperature	-20 ~ 60°C
Fit Motor	250W, 350W, 500W

Applications

Electric Bicycles
Electric Scooters
Electric Vehicles (EVs)

Packaging & Shipping

The battery is packaged securely with EPE pearl cotton for internal protection and sturdy cardboard cartons for outer packaging. Custom packaging options are available based on customer needs.
