Ecavix Deep Cycle 48V 200ah EV Battery

48V 200Ah deep cycle LiFePO4 battery features high energy density, long cycle life, and stable performance for electric vehicles, RVs, yachts, and more.

Categoría:

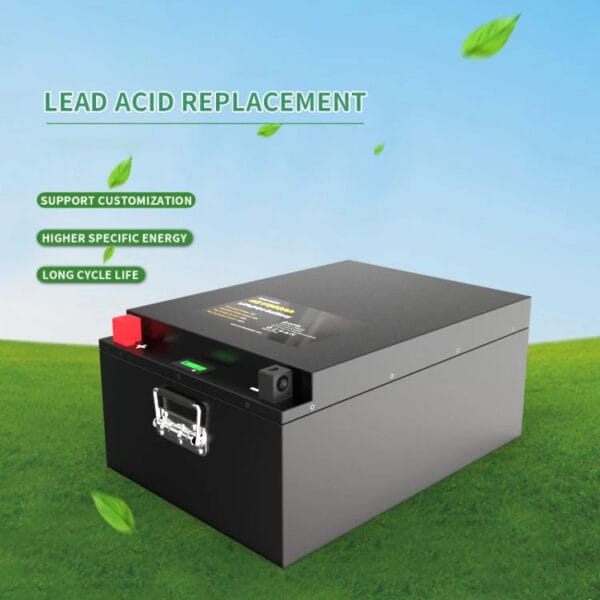

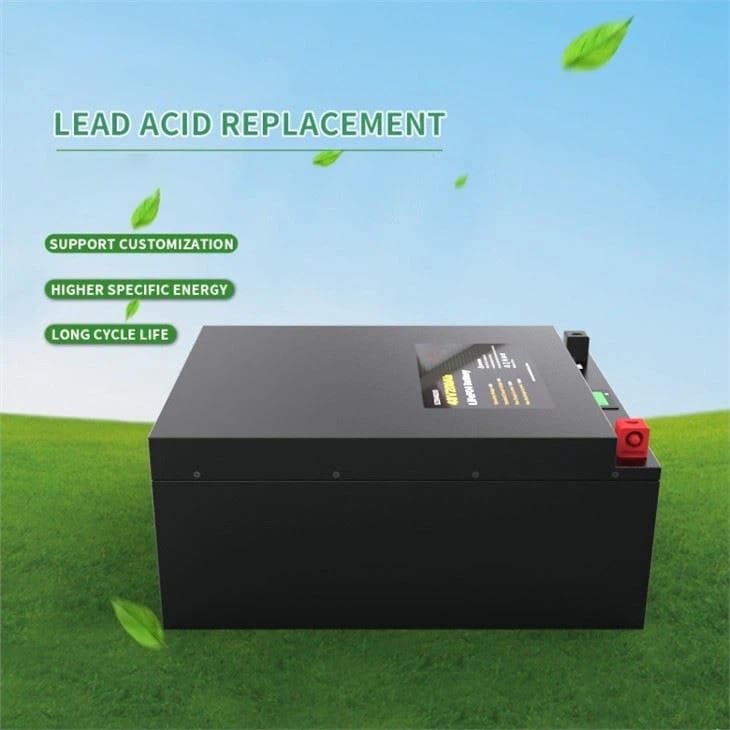

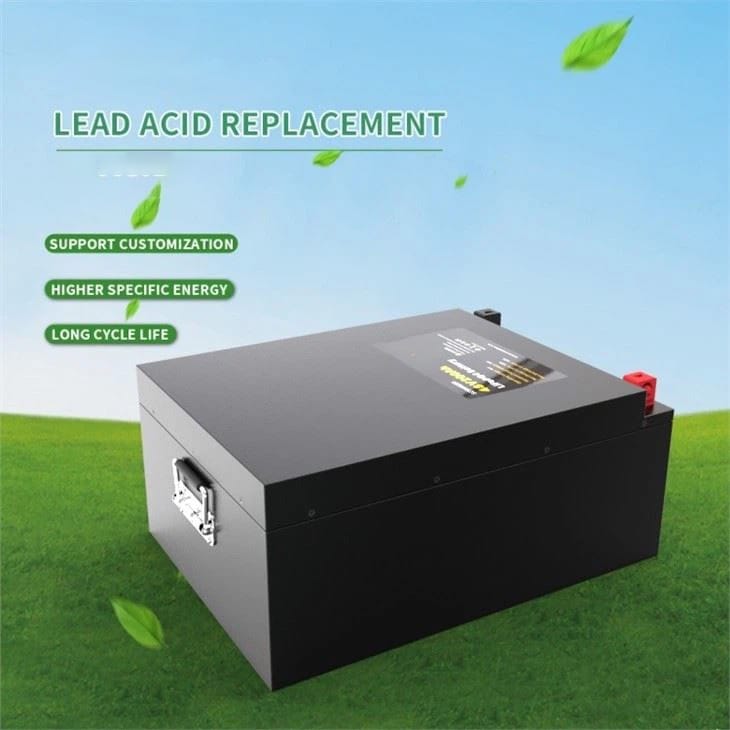

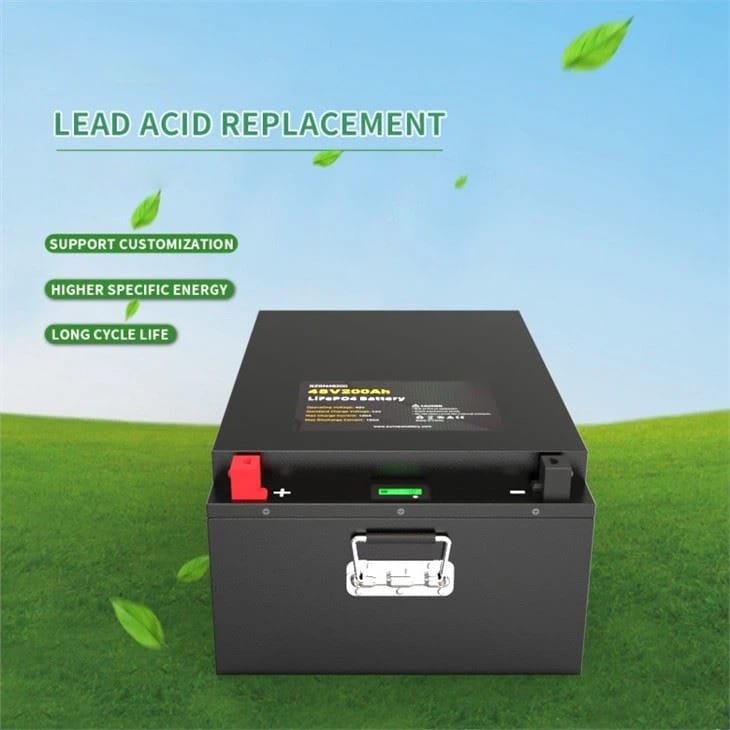

Ecavix 48V 200Ah Deep Cycle LiFePO4 Battery Pack

En Ecavix 48V 200Ah LiFePO4 Battery is a high-performance, deep-cycle battery designed for electric vehicles and other power-hungry systems. Unlike traditional batteries, it allows deep discharge without significantly shortening the battery life. Its high energy density, fast charging, and exceptional safety make it ideal for demanding applications like EVs, RVs, yachts, golf carts, sweepers, and more.

Características principales

  • Supports deep discharge without compromising battery life.
  • Advanced LiFePO4 chemistry with high thermal and chemical stability.
  • Stable voltage output across entire discharge cycle — no voltage drop-off until depletion.
  • Environmentally friendly: free of heavy metals and recyclable materials.
  • Built-in BMS system offers full protection from overcharge, over-discharge, overcurrent, and overheating.
  • Compact and integrated design saves installation space and simplifies setup.
  • Long lifespan — more than 3000 cycles at 80% DOD, with over 10 years of service life.

Aplicaciones

  • Vehículos eléctricos
  • Sweepers & Cleaning Robots
  • RVs and Motorhomes
  • Yachts & Marine Equipment
  • Golf Carts
  • Industrial Forklifts and AGVs

Technical Specifications

ModeloSNP48200
BrandEcavix
Battery Pack Voltage48V
Capacidad nominal200Ah / 9600Wh
Cell TechnologyLiFePO4
Ciclo de vidaOver 3000 cycles @ 80% DOD
Operation Life10+ years
Temperatura de carga0℃ ~ 65℃
Temperatura de descarga-20℃ ~ 65℃
Corriente de carga máxima50A
Corriente máxima de descarga100A
Charger Limit Voltage54.75V
Tensión de corte de descarga37.5V
DimensionesL580 × W230 × H650 mm
Peso95 kg
InstallationFree installation
Parallel / Series Support
CertificacionesCE, RoHS, UN38.3, MSDS

Why Choose LiFePO4?

Compared with conventional lithium-ion chemistries, LiFePO4 batteries offer improved stability, safety, and cycle longevity. The combination of Fe-P-O in the cathode structure allows for faster ion migration and stable redox reactions, making this battery ideal for repetitive deep-cycle applications.

Thanks to its consistent voltage platform and lack of memory effect, the SNP48200 provides reliable and safe power in diverse environments — from hot and humid to cold and industrial-grade conditions.
