Erdungsbasis Batterie 51.2V 100Ah，51.2V 200ah

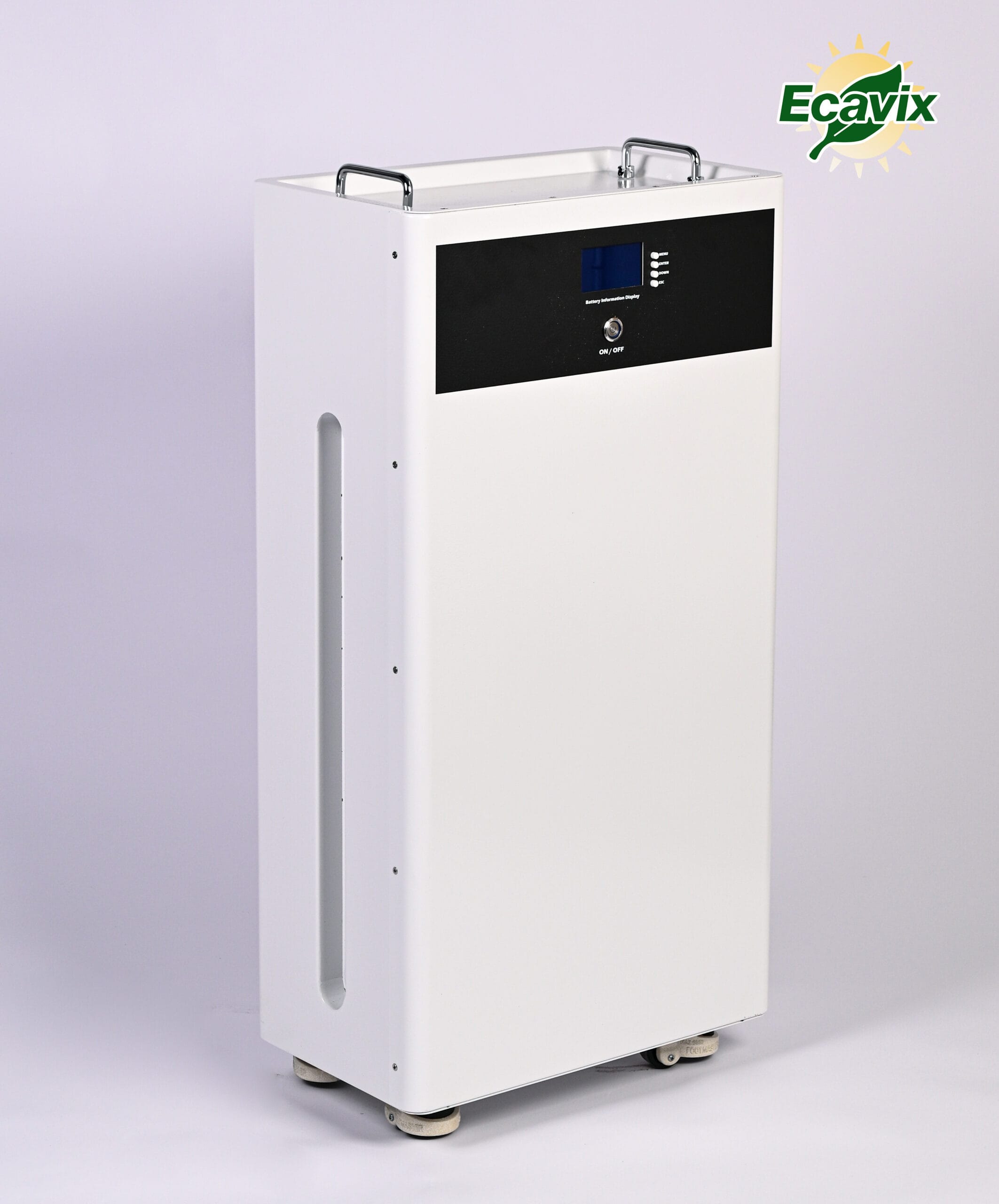

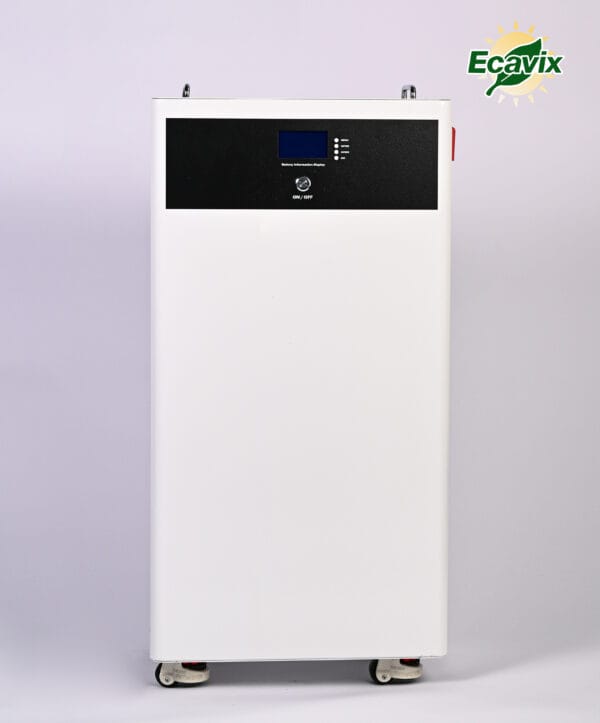

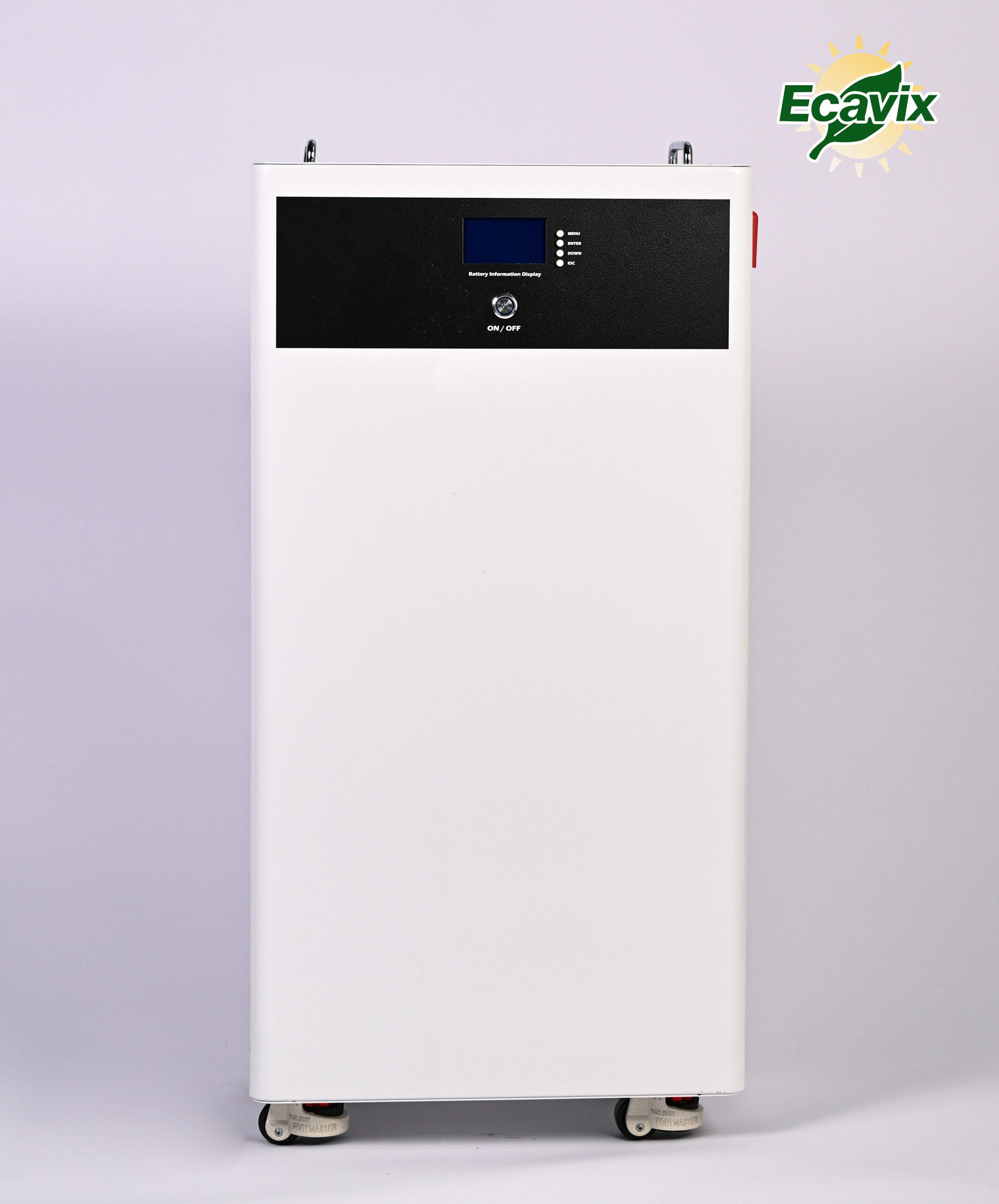

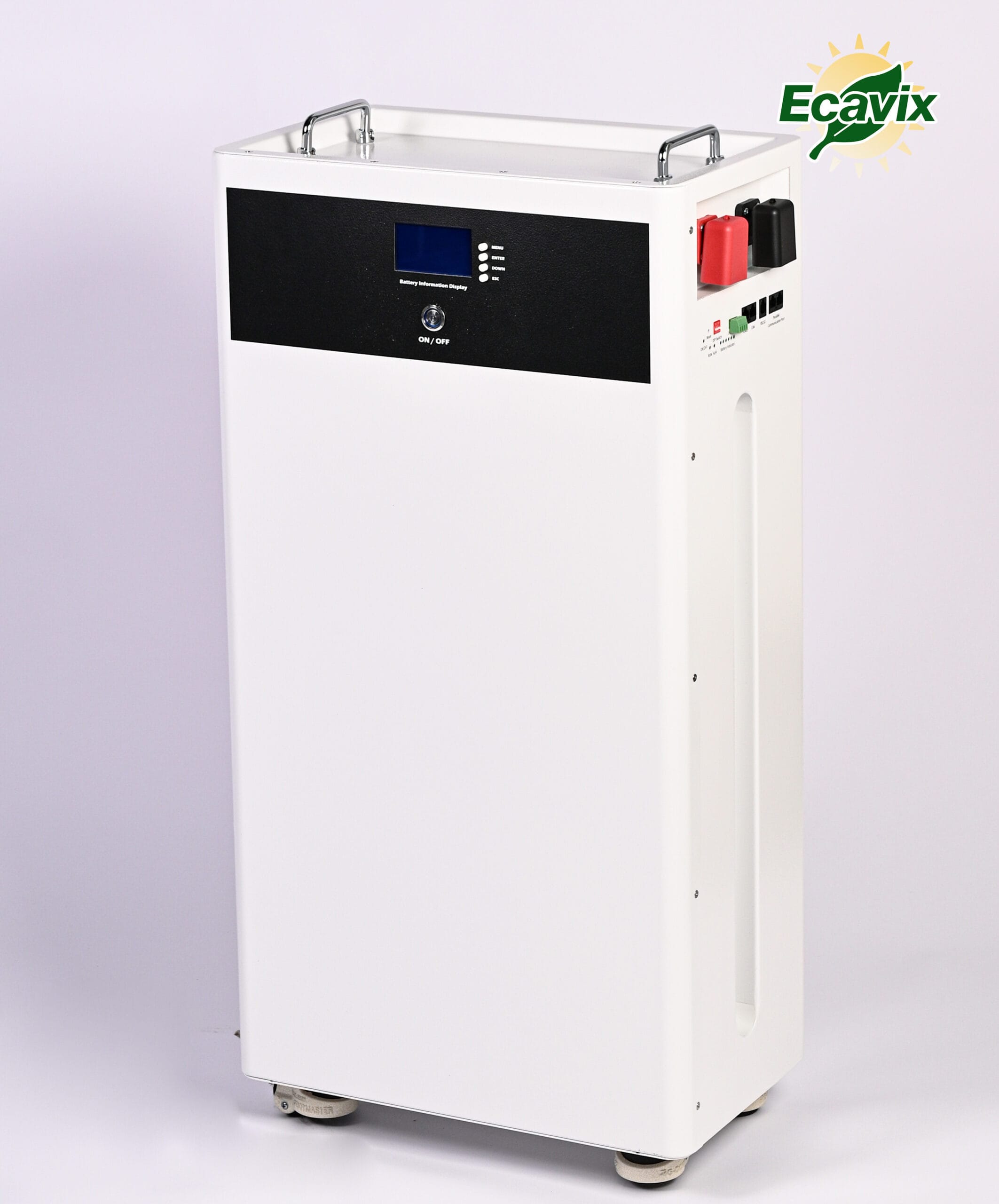

Ecavix’s vertical Erdungsbasis Batterie 51.2V 100Ah，51.2V 200ah is built for residential and commercial energy storage, offering modular capacities from 5.12KWh to 10.24KWh. It adopts Grade A LiFePO4 cells with outstanding safety and durability. With long life cycles, smart BMS protection, and flexible parallel capability, this battery is ideal for backup power, solar ESS, and off-grid applications.
Ground Base Battery Key Features
- Brand-new Grade A lithium iron phosphate cells.
- Smart BMS with real-time monitoring and passive balancing.
- High cycle life: 6500+ times, 12-year design life.
- Supports up to 15 units in parallel for easy capacity expansion.
- Thermal-stable chemistry ensures maximum safety.
- Fully customizable: voltage, current, ports, size, Bluetooth, heating, etc.
- OEM/ODM service available for industrial and residential projects.
Scalable Energy Storage System
You can combine multiple units in parallel to meet various energy demands:
- 3 × 51.2V 200Ah → 30.72kWh
- 15 × 10.24kWh units → 153.6kWh large-scale ESS
Technische Daten
| Model Series | DL-LFP-LVM10 / LVM15 / LVM15L |
|---|---|
| Nennspannung | 51.2V |
| Nominal Capacity Range | 200Ah to 600Ah |
| Energy Capacity | 10.24kWh ~ 32kWh |
| Zellentyp | LiFePO4 (Grade A) |
| Zyklus Leben | ≥ 6500 cycles |
| Design Life | 12 years |
| Max Parallel Units | 15 |

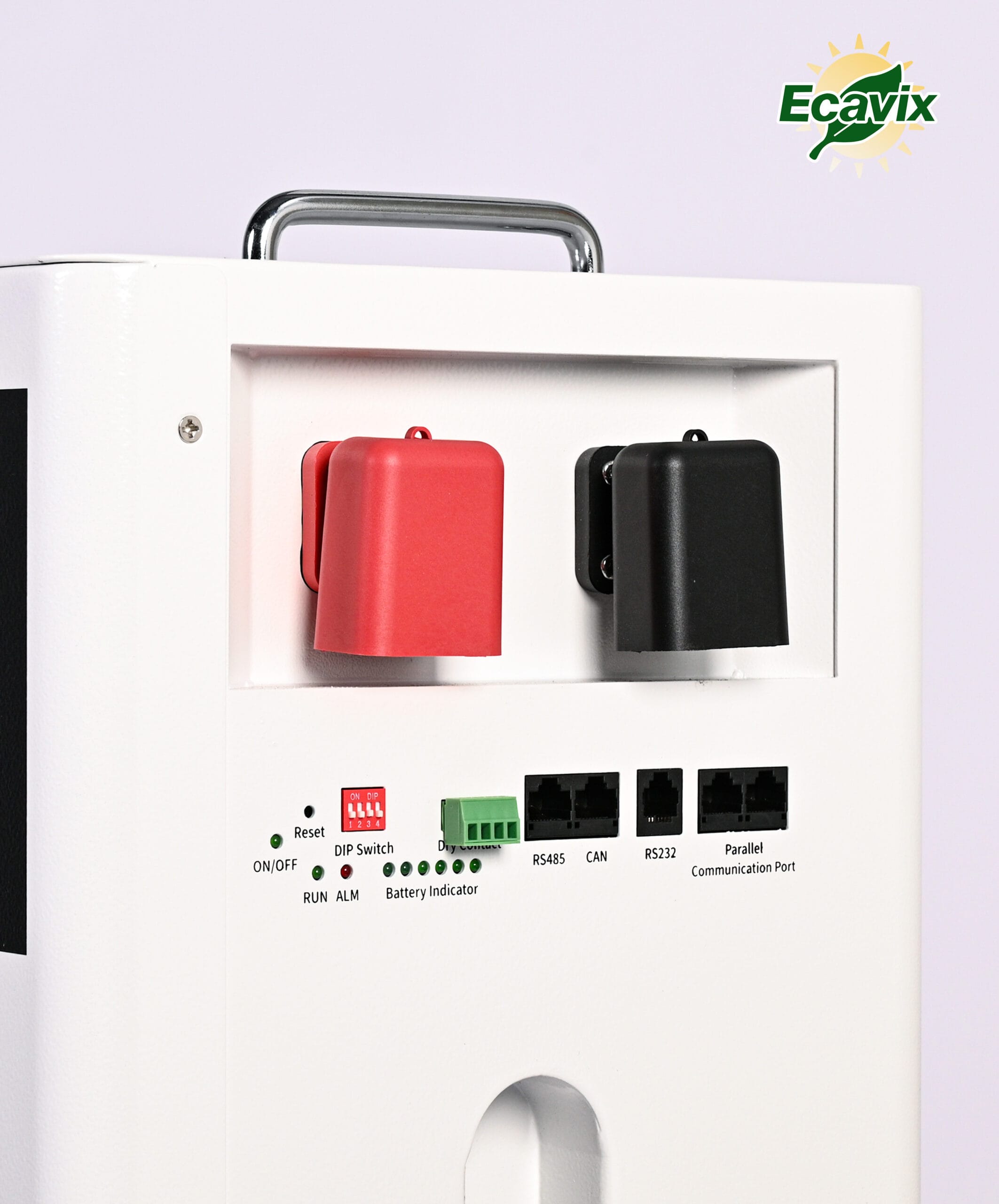

| Communication | RS485 / CAN |
| Halterung Typ | Vertical / Floor standing |
| Ladung Temperatur | 0℃ ~ 45℃ |
| Entladetemperatur | -20℃ ~ 55℃ |
| Customization Options | Bluetooth, Heating, Appearance, Ports, Size |
| Zertifizierungen | CE, UN38.3, MSDS, RoHS |
Available Configurations
- 51.2V 200Ah – 10.24kWh
- 51.2V 230Ah – 11.78kWh
- 51.2V 280Ah – 14.34kWh
- 51.2V 305Ah – 15.62kWh
- 51.2V 314Ah – 16.07kWh
- Other capacities: 28kWh, 32kWh (customized)
Anwendungen
- Home solar energy storage system (ESS)
- Backup power for residential and commercial use
- Microgrids and off-grid power systems
- UPS and energy shift for peak shaving
Why Choose Ecavix Energy?
- 11+ years of lithium battery manufacturing experience
- Wide voltage range: 12V to 96V LiFePO4 and energy storage systems
- In-house engineering team for flexible OEM/ODM customization
- 10-year after-sales service guarantee
- Strict cell matching and intelligent balancing for battery consistency
