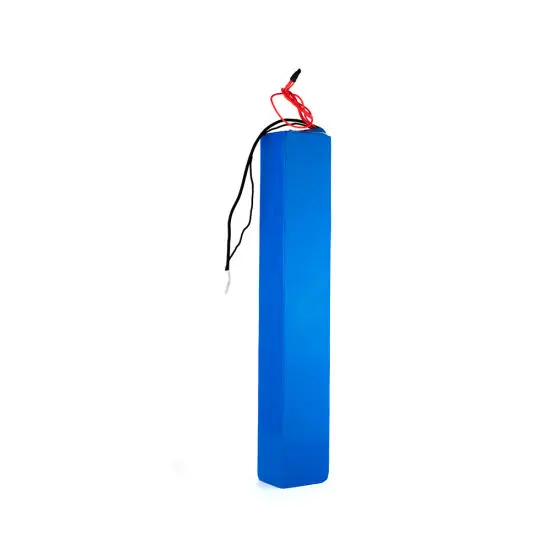

36V 10Ah Lithium-Ion Battery Pack for E-Bike

Produktübersicht

Batterie-Modell	Del-3610P
Nennspannung	36V
Nominale Kapazität	10Ah
Akku-Konfiguration	10S5P (18650 cells)
Akku-Typ	Li-ion (Lithium Ion)
Standard Charge Voltage	42V ± 0.05V
Standard Discharge Voltage	30V ± 0.05V
Standard-Ladestrom	0.5C
Max. Ladestrom	<5A (Adjustable)
Max. Entladestrom	<15A (Adjustable)
Max Pulse Discharge Current	≤ 35A (Adjustable)
Gewicht	2.5kg
Abmessungen	495mm x 70mm x 38mm
Impedance	≤ 150 mΩ
Betriebstemperatur (Ladung)	0°C ~ 45°C
Betriebstemperatur (Entleerung)	-20°C ~ 60°C
Lagertemperatur	-20°C ~ 40°C (for 3 months)
Zyklus Leben	1000 cycles
Garantie	1 Jahr
Zertifizierung	CE, RoHS, MSDS, UN38.3, FCC

Wesentliche Merkmale

Lange Zyklusdauer
Supports up to 1000 charge cycles with minimal capacity loss.

Adjustable Discharge Currents
Customize the discharge rate for different applications, ensuring better efficiency and performance.

Eingebauter BMS-Schutz
Protects the battery from overcharge, over-discharge, and short circuits.

Wide Operating Temperature Range
Functions smoothly in temperatures ranging from -20°C to 60°C during discharge.

Anwendungen

Elektrische Fahrräder
Elektro-Roller
Electric Vehicles
Portable Energy Storage Systems

Versand und Verpackung

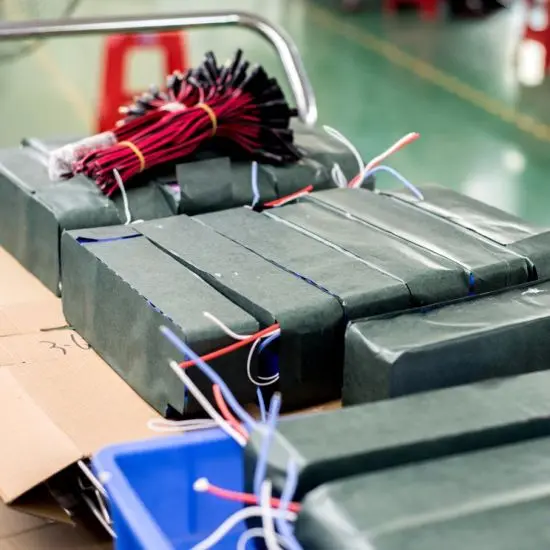

The Del-3610P 36V 10Ah battery pack is packaged in standard export boxes with protective foam to ensure safe delivery. We offer shipping via air (DHL, UPS, FedEx) for small orders, or by sea for larger quantities.
